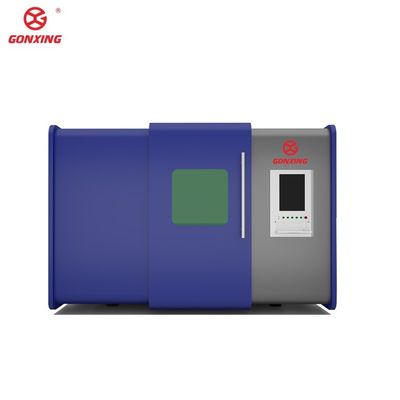

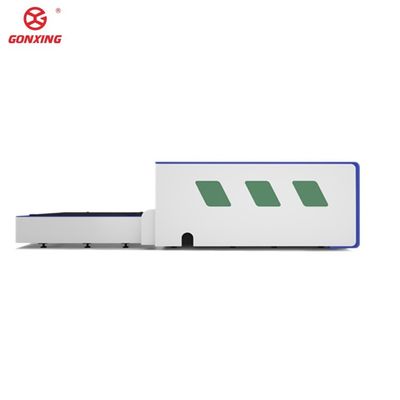

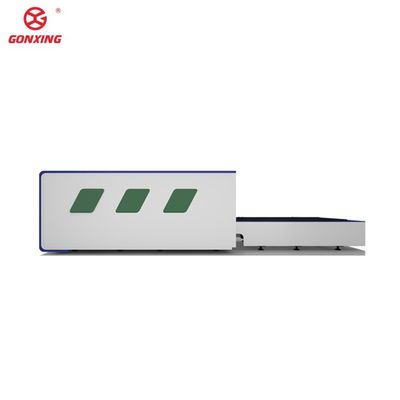

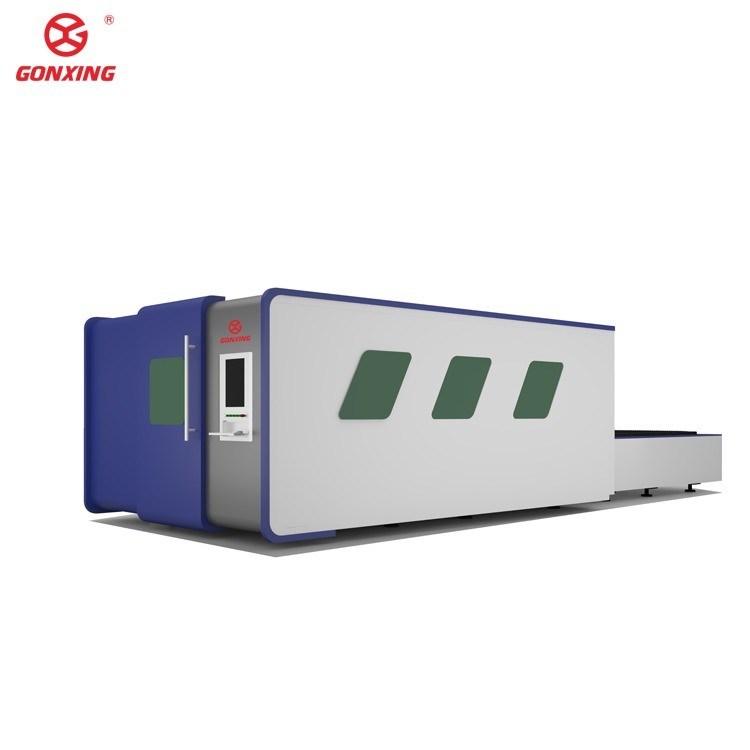

Industrial Double Table Model 6000w Sheet Metal Laser Cutting Machine with 4-axis Configuration and Yaskawa Servo Motor
Product Details:
| Place of Origin: | Shandong, China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-4 sets |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 1500mm*3000mm | Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, Igs |
| Cutting Thickness: | 30mm | CNC Or Not: | Yes |
| Cooling Mode: | WATER COOLING | Laser Source Brand: | Max/Raycus/IPG, MAX/Raycus/IPG |
| Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
| Weight (KG): | 7000 KG | Key Selling Points: | High-accuracy |
| Warranty: | 3 Years | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Advertising Company |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 3 Years | Core Components: | Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, Laser Source, Laser Head, Water Chiller |
| Mode Of Operation: | Continuous Wave, Continuous Wave | Configuration: | 4-axis |
| Products Handled: | Sheet Metal | Feature: | Fully-enclosed |
| Product Name: | Closed Exchange Table Fiber Laser Cutting Machine | Keyword: | Laser Metal Cutting Machine |
| Cutting Materials: | Metal Materails | Laser Power: | 1000w-30000w |
| Advantage: | Fast Speed Cutting, Improve Efficiency | After-sales Service Provided: | 24-hour After-sales Service, Door-to-door Installation And Maintenance |
| Water Cooling: | S&A Chiller | Laser Head: | Auto Focus Laser Head |
Product Description
model | GX-3015C | GX-4015C | GX-6015C | GX-4020C | GX-6020C | ||||
working area | 1500*3000mm | 1500*4000mm | 1500*6000mm | 2000*4000mm | 2000*6000mm | ||||
X/Y axis positioning accuracy | ±0.03mm | ||||||||
X/Y axis repositioning accuracy | ±0.02 mm | ||||||||
maximum movement speed | 150 m/min | ||||||||
maximum acceleration | 1.5G | ||||||||
Laser Power | 1-30kw | 2-30kw | 2-30kw | 2-30kw | 2-30kw | ||||
Laser Source | MAX/RAYCUS/IPG(optional) | 1.5G | 1.5G | 1.5G | |||||
laser cutting head | OSPRI/ PRECITEC/ RAYTOOLS (optional) | ||||||||
servo motor | Fuji/Delta/INOVANCE/Yaskawa (optional) | ||||||||
Control systems and software | CYPCUT/RAYTOOLS | ||||||||
Reducer | Shimpo | ||||||||
HypCut Control system
HypCut laser cutting control system is a set of software specially developed to meet the needs of high-power laser cutting in the industry. A professional process model is provided for high-power laser blanking, which can realize intelligent production. In addition, the software supports planning and scheduling of order tasks and assists production management; at the same time, the modular design provides users with more concise and efficient operations, assisting users in quickly completing production tasks.

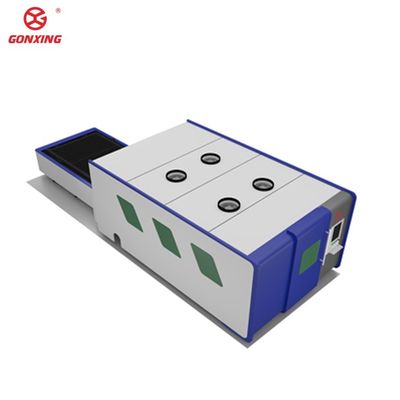

Shuttle Platform Machine Bed
The structure of the bed is welded with high-strength steel plates, and the whole bed is subjected to 3 welding processes to make
the welds stronger. Natural cooling for many days to eliminate stress, making the bed more durable and not deformed.The exchange
platform design, 10 seconds exchange, greatly improves the processing efficiency and saves the production cost.
the welds stronger. Natural cooling for many days to eliminate stress, making the bed more durable and not deformed.The exchange
platform design, 10 seconds exchange, greatly improves the processing efficiency and saves the production cost.
Auto focus laser head
BOCI or Raytools auto-focus laser head,World brand and quality.The software automatically adjusts the focal length to complete
rapid perforation and cutting of sheets of different thicknesses.
It is more friendly to those with 0 experience, and the operation is simple, convenient, fast and accurate.
rapid perforation and cutting of sheets of different thicknesses.
It is more friendly to those with 0 experience, and the operation is simple, convenient, fast and accurate.
Aviation Aluminum Beam
The beam is made of aviation-grade extruded aluminum, which has the advantages of good toughness, light weight, corrosion
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
Accuracy measurement
Original 35mm Taiwan YYC rack, Hiwin guide rail.Greater carrying capacity to the thickness of the metal to be cut.and with Automatic lubrication system it can help the users more convenient and save more time .
Detailed control
Whole machine delivery, no installation is required, and it is ready to use when plugged in.
Industrial computer, good cooling
effect, dustproof.
effect, dustproof.
Testing made before shipment.
each customers machine all be tested and runing more than 24h in our factory and testing kind of materails and thickness and save the parameters for all of the customers .

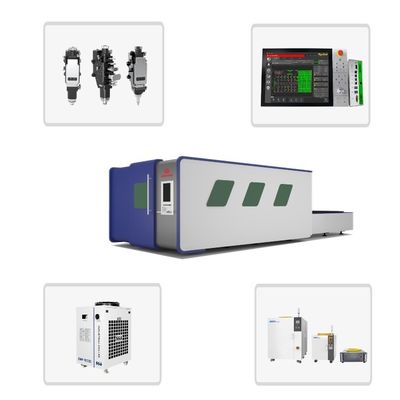

High quality accessories guaranteed
with top brand Raycus Auto focus laser head. it is more convenient for without any using experience customers to make adjustments .and long using life
Quality control
Ensure the accuracy of cutting parameters and ensure high-quality cutting samples.it will be more stable for customer working
Q: What is a fiber laser cutting machine? A: Fiber laser is a special type of solid laser. Typically, fiber lasers are optically pumped, which is accomplished by coupling the radiation from a diode maser or other fiber laser into the cladding or core itself in a direction parallel to the fiber core. In many cases, to achieve higher output power, double-clad fiber is used. What materials can fiber laser cut? Various metals such as stainless steel, carbon steel, mild steel, galvanized steel, aluminum,Copper etc. Q: Do you have CE documents and other customs declaration documents? A: Yes, we have the original. First, we will show you and give you CE/packing list/commercial Invoice/sales contract for customs clearance. Q: Payment terms? A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash, etc. Q: I don’t know how to use it after receiving it, or I encounter problems during use. What should I do? A: We can provide cam for team viewer/Whatsapp/email/phone/Skype until you solve all the problems. Q: What is your MOQ? A: We have no MOQ. Whether it is an order for 1 set or 100 sets, we will support you wholeheartedly. Q: How does your factory do in terms of quality control? A: Quality is priority. Each OREE laser machine will undergo 24 tests. After all 24 items are passed, our QC will conduct a 48 to 72 hours reliability test. Our laser machine has obtained CE.
Want to Know more details about this product
