Hotels Boost Efficiency with GONXING LASER Sale Metal Large Engraving Fiber Laser Marking Machine Marking Area 175*175mm
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | GONXING |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,430.00/sets 1-2 sets |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Application: | Laser Marking | Working Accuracy: | ±0.001mm |
|---|---|---|---|
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Laser Type: | Fiber Laser |
| Condition: | New | CNC Or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZCAD |
| Laser Source Brand: | Raycus Max JPT IPG | Control System Brand: | JCZ |
| Weight (KG): | 100 KG | Key Selling Points: | High-accuracy |
| Warranty: | 3 Years | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| Marking Area: | 110*110mm /175*175mm/ 200*200mm | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 3 Years |
| Core Components: | Engine | Mode Of Operation: | Pulsed |
| Configuration: | Bench-top | Feature: | Traceability |
| Function: | Marking Logo Metal Non Metal | GALVO Lens: | SINO-GALVO Lens |
| Interface Connection: | USB Interface | Red Light: | Double Red Light |
| Power Tunability: | 10 To 100% | Wavelength: | 1064 ± 5 Nm |
| Power Stability: | ≤3 % | ||
Product Description
Product name | Fiber laser marking machine | Cooling mode | Air cooling |
Product Series | GX-M | Maximum marking speed | 700mm/s |
Laser Power | MAX/JPT/Raycus/IPG | Minimum line width | 0.015mm |
Power | 30W/50W/80W/100W/120W/200W | Minimum characters | 0.2mm |
Laser wavelength | 1064 nanometer | Pulse frequency | 30KHz-100KHz(Raycus) 1KHz-4000KHz(JPT) |
Maximum marked area | 300*300mm | Operating environment | Operating temperature:0-40 Storage temperature:-10-60 Humidity:30%-85% |
Minimum marking area | 50*50mm | Power supply | AC110V/220V+10%/50hz or 60hz |
Control software | EZCAD3.0/EZCAD2.0 | Operating system | Win XP/7/8/10/11(64bit) |

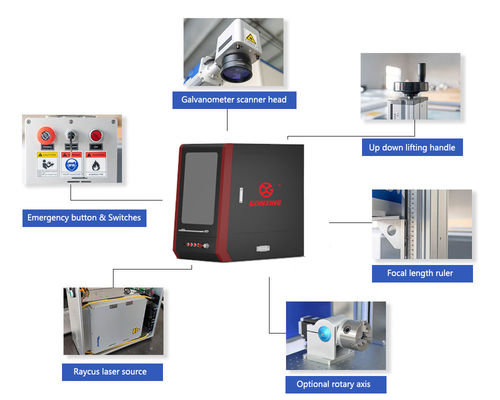

High speed galvanometer
The use of high-speed galvanometer scanning head reduces delay, improves marking speed and efficiency, and is widely used to mark metal, plastics, motherboards, glass, ceramics and other items.
Power switch button
Buttons, emergency stop switches, etc. are not damaged and have a long service life and are not easily damaged.
Lifting scale
It has a scale and scale pointer light path, and has a locking function for lifting and lowering to prevent defective products caused by changes in focal length during mass production.
Console
The convenient workbench is evenly arranged with 25*25mm screw holes to facilitate positioning of different products. Each machine is equipped with two stops as simple fixtures for customer convenience.
Q: Are you a factory or a trading company? A: We are a manufacturer established in 2015 and located in Jinan. Committed to providing economical, high-quality laser equipment to our users, we provide complete OEM and after-sales services. Welcome to visit our factory. Q: What is the machine guarantee? A: We will provide a 2-year warranty, and if there is a problem with the machine, parts will be provided free of charge during the machine warranty period. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you. So any questions, please feel free to tell us and we will provide you with the best solution. Q: If I am a new buyer, how should I use the machine? A: We will provide English (or other language) manuals and videos for the machine you purchase. The software is easy to learn with instructional videos, and we also offer free online training. If you still need our help, please feel free to contact us via voice or video call. Q: How do you control your quality? A: Quality is priority. The entire production process will be subject to regular inspections and strict quality control. The entire machine will be tested to ensure they work well before leaving the factory. Our machines have passed CE certification, comply with European and American standards, and are exported to more than 100 countries. Q: How do I know your machine is designed for my product? A: You can send us samples for marking to check the quality, and we can help you with sample testing. Free sample marking service provided.
Want to Know more details about this product
