argon arc welding and plasma welding, the welding heat affected area is small, and it is not easy to deform. The penetration is
large, and the weld is beautiful and firm.
 |
Stainless Steel Jewelry Weiding Cleaning Cutting 2000w 3000w Portable Laser Welding Machine with JPT MAX Laser Source
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | GXLASER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $990.00/sets 1-4 sets |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Application: | Laser Marking | Working Accuracy: | 3mm |
|---|---|---|---|
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, JOG | Laser Type: | Fiber Laser, JPT Optional |
| Condition: | New | CNC Or Not: | Yes |
| Cooling Mode: | WATER COOLING | Laser Source Brand: | JPT MAX |
| Control System Brand: | Au3tech/Gefasst | Weight (KG): | 165 KG |
| Key Selling Points: | High-accuracy | Warranty: | 2 Years |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Marking Area: | Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, Laser Source, Control Software, Filed Lens, Water Chiller, Laser Head, Wire Feeder |
| Mode Of Operation: | Pulsed | Configuration: | Stand-alone |
| Feature: | Water-cooled | Laser Welding Machine: | 3 In1 Laser Welding Machine |
| Laser Source: | JPT Laser Source | Applicable Material: | Metal Materials |
| Power: | 220/50Hz/2kVA(Customizable) | Function: | Weiding Cleaning Cutting |
| Key Words: | 3 In 1 | Cooling System: | Water Cooling System |
| Voltage: | 220V/380V 50/60hz | After-sales Service Provided: | 2 Years |
Product Description
Model | GX-SA | GX-SA | GX-SA | GX-SA |
Laser Source | Reci/Max/Raycus | Reci/Max/Raycus | Reci/Max/Raycus | Reci/Max/Raycus |
Laser Power | 1000w | 1500w | 2000w | 3000w |
Working Voltage | 220V | 220V | 220V | 220V |
Welding speed area | 0-120mm/s | 0-120mm/s | 0-120mm/s | 0-120mm/s |
Working environment temperature area | 15° ~35° | 15 °~35° | 15° ~35° | 15° ~35° |
Water chiller | S&A | S&A | S&A | S&A |
Welding thickness recommendations | 3mm | 4mm | 5mm | 8mm |
Size | 1000*630*1090mm | 1000*630*1090mm | 1000*630*1090mm | 1000*630*1090mm |
Fiber length | Standard 10m/Max 15m | Standard 10m/Max 15m | Standard 10m/Max 15m | Standard 10m/Max 15m |
Neat distribution cabinet
GX-SA laser welding machine is suitable for welding all metal materials, the welding speed is 3-10 times that of traditional
argon arc welding and plasma welding, the welding heat affected area is small, and it is not easy to deform. The penetration is
large, and the weld is beautiful and firm.
argon arc welding and plasma welding, the welding heat affected area is small, and it is not easy to deform. The penetration is
large, and the weld is beautiful and firm.
Au3tech Control System
Au3tech laser welding cleaning cutting three-in-one system is the latest to launch a handheld laser welding, laser cleaning, laser
cutting three-in-one integrated system. The working mode can be switched freely according to different application scenarios,
providing diversified solutions for different application requirements of users.
cutting three-in-one integrated system. The working mode can be switched freely according to different application scenarios,
providing diversified solutions for different application requirements of users.

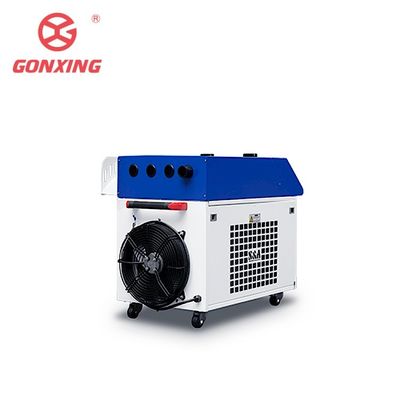

S&A Water Chiller
Water cooler, dual temperature and dual control, circulating water circuit, fast cooling laser source and welding head.

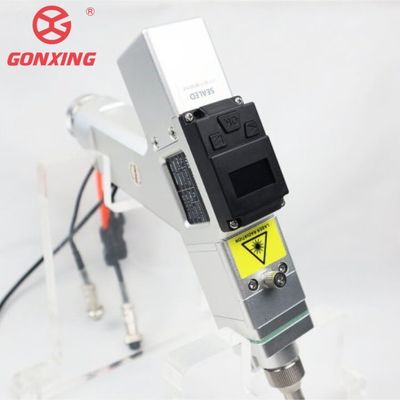

Au3tech Laser Head
High-threshold optics for better welding results.
Multiple safety locks, higher security.
Intelligent protection system, mobile terminal App and PC monitoring, real-time feedback of working status.
Ergonomically designed, comfortable to hold, lighter in weight and easy to hold.
Multiple safety locks, higher security.
Intelligent protection system, mobile terminal App and PC monitoring, real-time feedback of working status.
Ergonomically designed, comfortable to hold, lighter in weight and easy to hold.
Q: Are you a factory or a trading company? A: We are a manufacturer established in 2015 and located in Jinan. Committed to providing economical, high-quality laser equipment to our users, we provide complete OEM and after-sales services. Welcome to visit our factory. Q: How to install and run the machine? A: Our technicians have installed the machine before shipment. The machine will be shipped as a complete unit. For the installation of some small parts, we will send detailed training videos, user manuals and the machine. Q: What should I do if there is something wrong with the machine? A: If you encounter such problems, please contact us as soon as possible and do not try to repair the machine by yourself or others. We will We will solve the problem for you as soon as possible within 24 hours. Q: What is the minimum order quantity? A: We have no MOQ. Whether it is an order of 1 set or 100 sets, we will support you wholeheartedly and provide you with the best price Q: How does your factory do in terms of quality control? A: Quality is priority. Each GXLASER laser machine will undergo 24 tests. After all 24 items are passed, our QC will conduct a 48 to 72 hours reliability test. Our laser machine has obtained CE.
