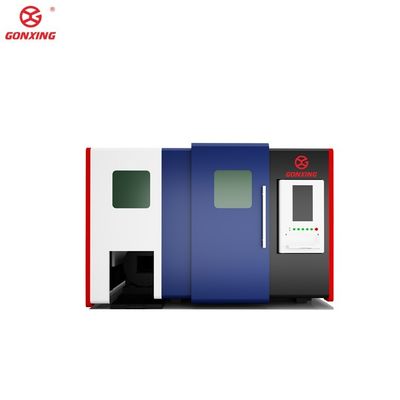

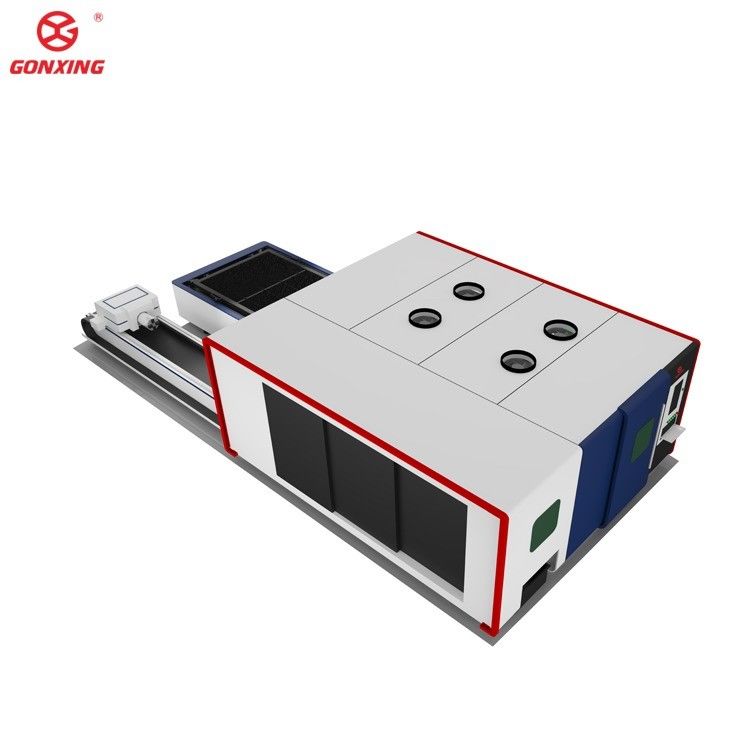

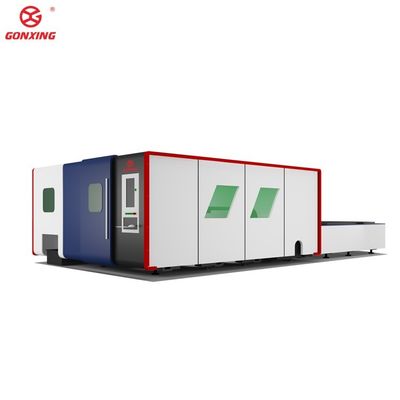

Automated Loading Schneider Electric-France 2000/3000W Fiber Laser Cutting Machine for Metal Integrated Plate and Tube

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GONXING

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$39,700.00/sets 1-3 sets
Payment Terms:	T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

Get Best Price Contact Now

Detail Information
Product Description

Detail Information
Application:	LASER CUTTING	Applicable Material:	Metal
Condition:	New	Laser Type:	Fiber Laser
Cutting Area:	1500mm*3000mm	Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:	20mm	CNC Or Not:	Yes, Yes
Cooling Mode:	WATER COOLING	Control Software:	Cypcut, CYPCUT
Laser Source Brand:	MAX/IPG/Raycus	Laser Head Brand:	Raytools/WSX/Au3tech
Servo Motor Brand:	Yaskawa, Fuji/Delta/leadshine/Yasukawa	Guiderail Brand:	HIWIN
Control System Brand:	Cypcut	Weight (KG):	6500 KG
Key Selling Points:	Automatic	Warranty:	3 Years
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Printing Shops, Energy & Mining, Other, Advertising Company	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	3 Years
Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC, Laser Source, Laser Head, Water Chiller, Rail, Servo Motor	Mode Of Operation:	Continuous Wave
Configuration:	4-axis	Products Handled:	Sheet Metal
Feature:	Automated Loading	Gear Rack:	YYC-Taiwan
Bearings:	NSK-Japan	Pressure Reducing Valve:	SMC-Japan
N2 Control Valve:	SMC-Japan	O2 Control Valve:	SMC-Japan
Electrical Components:	Schneider Electric-France	Circuit Breaker:	Schneider Electric-France

Product Description

model	GX-3015CT	GX-4015CT	GX-6015CT	GX-4020CT	GX-6020CT
working area	1500*3000mm	1500*4000mm	1500*6000mm	2000*4000mm	2000*6000mm
X/Y axis positioning accuracy	±0.03mm
X/Y axis repositioning accuracy	±0.02 mm
maximum movement speed	150 m/min
maximum acceleration	1.5G
Laser Power	1-30kw	2-30kw	2-30kw	2-30kw	2-30kw
Laser Source	MAX/RAYCUS/IPG(optional)					1.5G	1.5G	1.5G
laser cutting head	OSPRI/ PRECITEC/ RAYTOOLS (optional)
servo motor	Fuji/Delta/INOVANCE/Yaskawa (optional)
Control systems and software	CYPCUT/RAYTOOLS
Reducer	Shimpo

removable display

Customers can adjust the direction of the display screen at will according to processing needs, which greatly facilitates customer use and improves processing efficiency.

32 inch screen with high definition toughened glass,It is stable and reliable, easy to adjust, and has complete functions. The
system is comprehensively displayed on the screen, which makes the operation easier and improves the operation efficiency and
processing efficiency.

Shuttle Platform Machine Bed

The structure of the bed is welded with high-strength steel plates, and the whole bed is subjected to 3 welding processes to make
the welds stronger. Natural cooling for many days to eliminate stress, making the bed more durable and not deformed.The exchange
platform design, 10 seconds exchange, greatly improves the processing efficiency and saves the production cost.

Raytools Auto focus laser head

Raytools or Boci auto-focus laser head,World brand and quality.The software automatically adjusts the focal length to complete
rapid perforation and cutting of sheets of different thicknesses.
It is more friendly to those with 0 experience, and the operation is simple, convenient, fast and accurate.

Aviation Aluminum Beam

The beam is made of aviation-grade extruded aluminum, which has the advantages of good toughness, light weight, corrosion
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.

Accuracy measurement

Original 35mm Taiwan YYC rack, Hiwin guide rail.Greater carrying capacity to the thickness of the metal to be cut.and with Automatic lubrication system it can help the users more convenient and save more time .

Detailed control

Whole machine delivery, no installation is required, and it is ready to use when plugged in.

Industrial computer, good cooling
effect, dustproof.

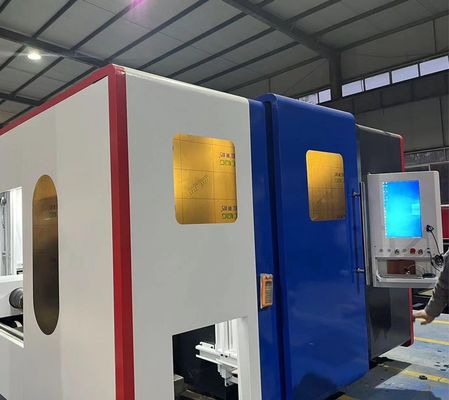

Testing made before shipment.

each customers machine all be tested and runing more than 24h in our factory and testing kind of materails and thickness and save the parameters for all of the customers .

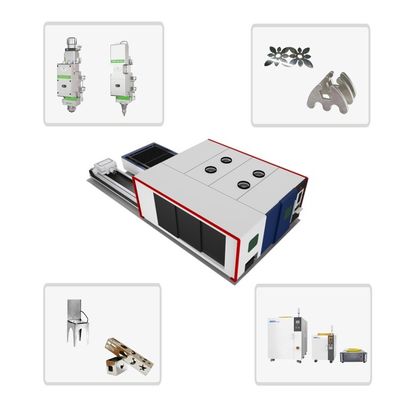

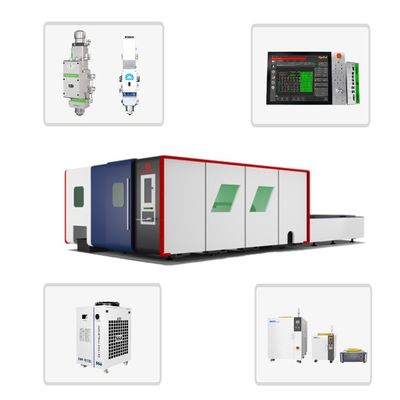

High quality accessories guaranteed

with top brand Raycus Auto focus laser head. it is more convenient for without any using experience customers to make adjustments .and long using life

Quality control

Ensure the accuracy of cutting parameters and ensure high-quality cutting samples.it will be more stable for customer working

Q: What is a fiber laser cutting machine? A: Fiber laser is a special type of solid laser. Typically, fiber lasers are optically pumped, which is accomplished by coupling the radiation from a diode maser or other fiber laser into the cladding or core itself in a direction parallel to the fiber core. In many cases, to achieve higher output power, double-clad fiber is used. What materials can fiber laser cut? Various metals such as stainless steel, carbon steel, mild steel, galvanized steel, aluminum,Copper etc. Q: Do you have CE documents and other customs declaration documents? A: Yes, we have the original. First, we will show you and give you CE/packing list/commercial Invoice/sales contract for customs clearance. Q: Payment terms? A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash, etc. Q: I don’t know how to use it after receiving it, or I encounter problems during use. What should I do? A: We can provide cam for team viewer/Whatsapp/email/phone/Skype until you solve all the problems. Q: What is your MOQ? A: We have no MOQ. Whether it is an order for 1 set or 100 sets, we will support you wholeheartedly. Q: How does your factory do in terms of quality control? A: Quality is priority. Each OREE laser machine will undergo 24 tests. After all 24 items are passed, our QC will conduct a 48 to 72 hours reliability test. Our laser machine has obtained CE.
