machine is lower.
Whole machine delivery, no installation is required, and it is ready to use when plugged in.
 |

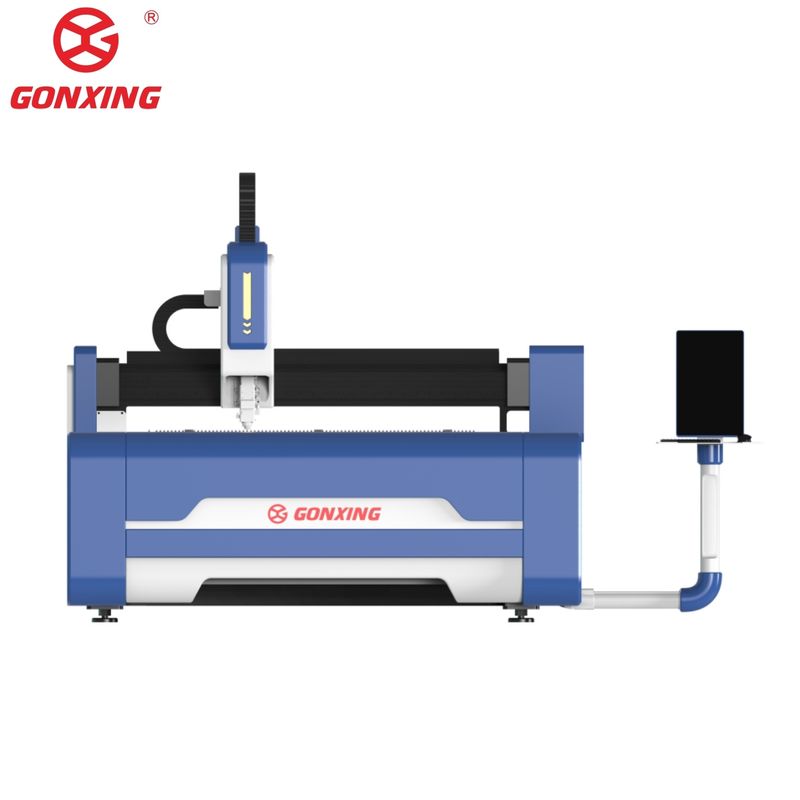

CYPCUT Control Software Used Stainless Steel Laser Cutting Machine for Building Material Shops and Delta Servo Motor
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | GONXING |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,200.00/sets 1-2 sets |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 1500mm*3000mm | Cutting Speed: | 0-40000mm/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 15mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | CYPCUT | Laser Source Brand: | MAX/RAYCUS/IPG |
| Laser Head Brand: | OSPRI/ PRECITEC/ RAYTOOL | Servo Motor Brand: | Fuji/Delta/INOVANCE/Yasukawa |
| Guiderail Brand: | HIWIN | Control System Brand: | CYPCUT/RAYTOOLS |
| Weight (KG): | 4500 KG | Key Selling Points: | High-accuracy |
| Warranty: | 3 Years | Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Advertising Company |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 3 Years | Core Components: | Engine |
| Mode Of Operation: | Continuous Wave | Configuration: | 4-axis |
| Products Handled: | Sheet Metal | Feature: | Water-cooled |
| IPC: | High Stability Industry PC | Gear Rack: | YYC-Taiwan |
| Bearings: | NSK-Japan | Pressure Reducing Valve: | SMC-Japan |
| N2 Control Valve: | SMC-Japan | O2 Control Valve: | SMC-Japan |
| Electrical Components: | Schneider Electric-France | Circuit Breaker: | Schneider Electric-France |
| Relay: | Schneider Electric-France | ||
Product Description
model | GX-3015E | GX-4015E | GX-6015E | GX-4020E | GX-6020E | ||||
working area | 1500*3000mm | 1500*4000mm | 1500*6000mm | 2000*4000mm | 2000*6000mm | ||||
X/Y axis positioning accuracy | ±0.03mm | ||||||||
X/Y axis repositioning accuracy | ±0.02 mm | ||||||||
maximum movement speed | 150 m/min | ||||||||
maximum acceleration | 1.5G | ||||||||
Laser Power | 1-6kw | 2-30kw | 2-30kw | 2-30kw | 2-30kw | ||||
Laser Source | MAX/RAYCUS/IPG(optional) | 1.5G | 1.5G | 1.5G | |||||
laser cutting head | OSPRI/ PRECITEC/ RAYTOOLS (optional) | ||||||||
servo motor | Fuji/Delta/INOVANCE/Yaskawa (optional) | ||||||||
Control systems and software | CYPCUT/RAYTOOLS | ||||||||
Reducer | Shimpo | ||||||||
All-in-one Design Concept
One-piece design, complete and simple structure, small size, to meet the rising shipping cost, so that the total cost of the
machine is lower.
machine is lower.

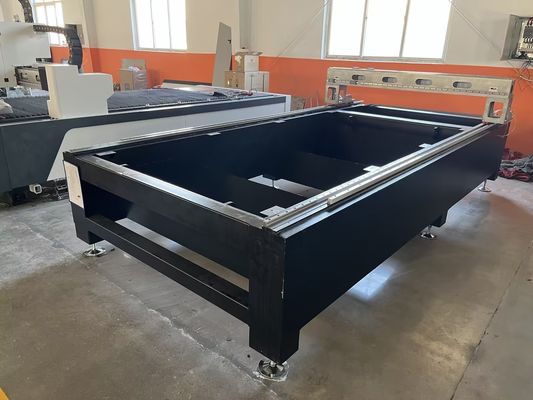

Heavy Duty Machine Bed
The structure of the bed is welded with high-strength steel pipes, and there are reinforcing ribs in the pipes to increase the
strength and toughness of the bed.The whole bed is subjected to 3 welding processes to make the welding seam firmer. The stress
relief heat treatment is carried out at 800 ℃ within 24 hours after welding. After taking it out, it is naturally cooled for many
days to relieve stress and make the bed more durable and not deformed.
strength and toughness of the bed.The whole bed is subjected to 3 welding processes to make the welding seam firmer. The stress
relief heat treatment is carried out at 800 ℃ within 24 hours after welding. After taking it out, it is naturally cooled for many
days to relieve stress and make the bed more durable and not deformed.

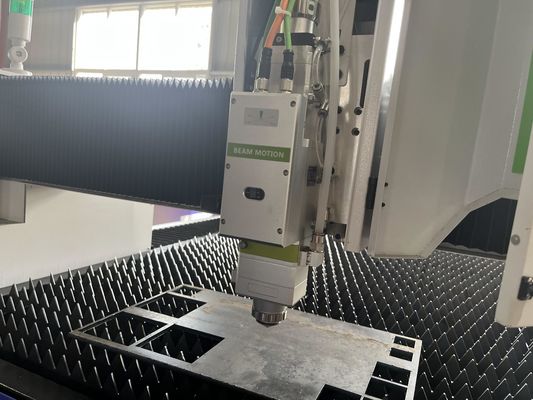

Raytools Auto focus laser head
The software automatically adjusts the focal length to complete rapid perforation and cutting of sheets of different
thicknesses.It is more friendly to those with zero experience, and the operation is simple, convenient, fast and accurate.
thicknesses.It is more friendly to those with zero experience, and the operation is simple, convenient, fast and accurate.
Aviation Aluminum Beam
The beam is made of aviation-grade extruded aluminum, which has the advantages of good toughness, light weight, corrosion
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
Accuracy measurement
Original 35mm Taiwan YYC rack, Hiwin guide rail.Greater carrying capacity to the thickness of the metal to be cut.and with Automatic lubrication system it can help the users more convenient and save more time .
Detailed control
Whole machine delivery, no installation is required, and it is ready to use when plugged in.
Industrial computer, good cooling
effect, dustproof.
effect, dustproof.
Testing made before shipment.
each customers machine all be tested and runing more than 24h in our factory and testing kind of materails and thickness and save the parameters for all of the customers .
High quality accessories guaranteed
with top brand Raycus Auto focus laser head. it is more convenient for without any using experience customers to make adjustments .and long using life
Quality control
Ensure the accuracy of cutting parameters and ensure high-quality cutting samples.it will be more stable for customer working
Q: What is a fiber laser cutting machine? A: Fiber laser is a special type of solid laser. Typically, fiber lasers are optically pumped, which is accomplished by coupling the radiation from a diode maser or other fiber laser into the cladding or core itself in a direction parallel to the fiber core. In many cases, to achieve higher output power, double-clad fiber is used. What materials can fiber laser cut? Various metals such as stainless steel, carbon steel, mild steel, galvanized steel, aluminum,Copper etc. Q: Do you have CE documents and other customs declaration documents? A: Yes, we have the original. First, we will show you and give you CE/packing list/commercial Invoice/sales contract for customs clearance. Q: Payment terms? A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash, etc. Q: I don’t know how to use it after receiving it, or I encounter problems during use. What should I do? A: We can provide cam for team viewer/Whatsapp/email/phone/Skype until you solve all the problems. Q: What is your MOQ? A: We have no MOQ. Whether it is an order for 1 set or 100 sets, we will support you wholeheartedly. Q: How does your factory do in terms of quality control? A: Quality is priority. Each OREE laser machine will undergo 24 tests. After all 24 items are passed, our QC will conduct a 48 to 72 hours reliability test. Our laser machine has obtained CE.
Want to Know more details about this product
