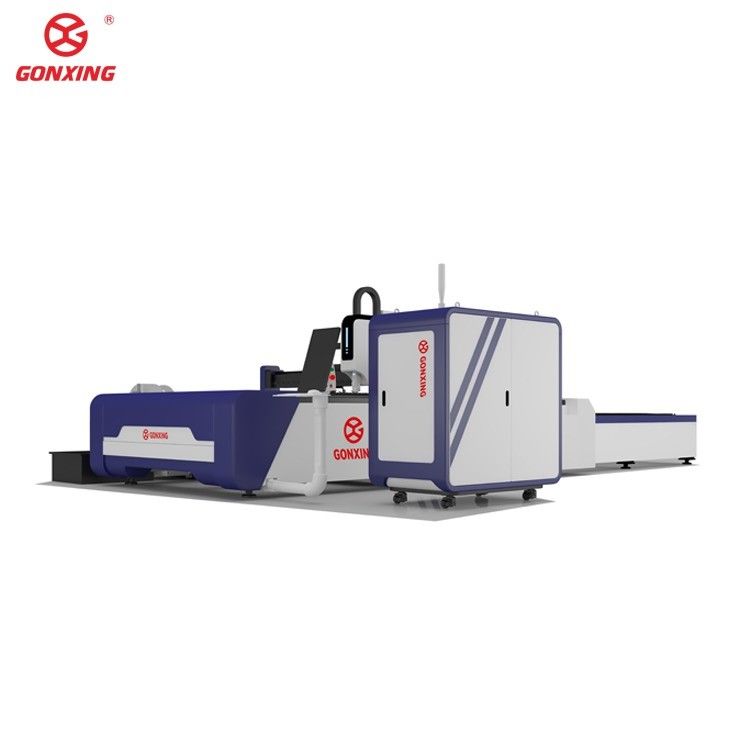

GONXING High Power Laser Cutting Machine 12000w-30000w with Automatic Focusing and High Speed MAX/RAYCUS Laser Source
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | GONXING |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,800.00/sets 1-2 sets |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 2000mm*6000mm | Cutting Speed: | 1.5G |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 18mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | CYPCUT/RAYTOOLS | Laser Source Brand: | MAX/RAYCUS |
| Laser Head Brand: | OSPRI/ PRECITEC/ RAYTOOL | Servo Motor Brand: | Fuji/Delta/INOVANCE/Yasukawa |
| Guiderail Brand: | HIWIN | Control System Brand: | CYPCUT/RAYTOOLS |
| Weight (KG): | 6500 KG | Key Selling Points: | Automatic |
| Warranty: | 3 Years | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 3 Years | Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
| Mode Of Operation: | Continuous Wave | Configuration: | 4-axis |
| Products Handled: | Sheet Metal | Feature: | Cover/Environmentally Friendly |
| IPC: | High Stability Industry PC | Gear Rack: | YYC-Taiwan |
| Bearings: | NSK-Japan | Pressure Reducing Valve: | SMC-Japan |
| N2 Control Valve: | SMC-Japan | O2 Control Valve: | SMC-Japan |
| Electrical Components: | Schneider Electric-France | Circuit Breaker: | Schneider Electric-France |
| Relay: | Schneider Electric-France | ||
Product Description
model | GX-3015ST | GX-4015ST | GX-6015ST | GX-4020ST | GX-6020ST | ||||
working area | 1500*3000mm | 1500*4000mm | 1500*6000mm | 2000*4000mm | 2000*6000mm | ||||
X/Y axis positioning accuracy | ±0.03mm | ||||||||
X/Y axis repositioning accuracy | ±0.02 mm | ||||||||
maximum movement speed | 150 m/min | ||||||||
maximum acceleration | 1.5G | ||||||||
Laser Power | 1.5-6kw | 1.5-6kw | 1.5-6kw | 1.5-6kw | 1.5-6kw | ||||
Laser Source | MAX/RAYCUS/IPG(optional) | 1.5G | 1.5G | 1.5G | |||||
laser cutting head | OSPRI/ PRECITEC/ RAYTOOLS (optional) | ||||||||
servo motor | Fuji/Delta/INOVANCE/Yaskawa (optional) | ||||||||
systems & software | CYPCUT | ||||||||
Reducer | Shimpo | ||||||||

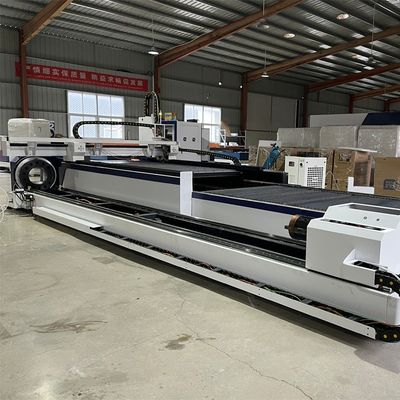

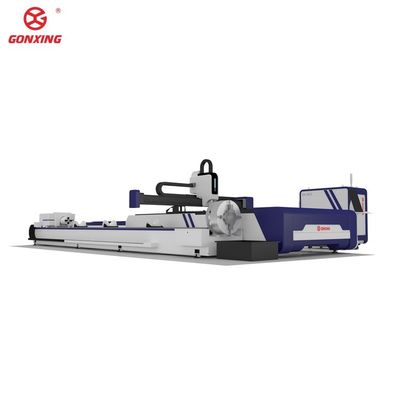

GX-3015ST New Design Concept
One machine has three functions, with cutting sheet and tube metal and also double tables ,which can cut both plates and pipes, saving space.cutting round ,square and some others pipe materails .
Heavy Duty Exchange table

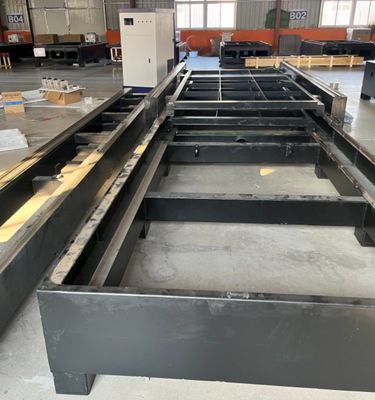

The structure of the bed is welded with high-strength steel pipes, and there are reinforcing ribs in the pipes to increase the
strength and toughness of the bed.The whole bed is subjected to 3 welding processes to make the welding seam firmer. The stress
relief heat treatment is carried out at 800 ℃ within 24 hours after welding. After taking it out, it is naturally cooled for many
days to relieve stress and make the bed more durable and not deformed.
strength and toughness of the bed.The whole bed is subjected to 3 welding processes to make the welding seam firmer. The stress
relief heat treatment is carried out at 800 ℃ within 24 hours after welding. After taking it out, it is naturally cooled for many
days to relieve stress and make the bed more durable and not deformed.

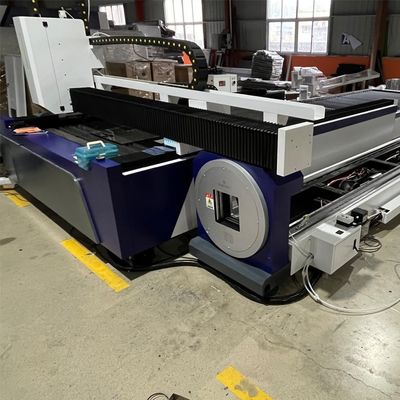

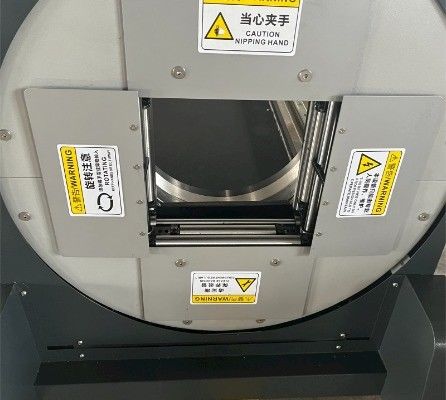

High quality fully pneumatic chuck
Full-stroke pneumatic chuck with a built-in cylinder, which is easy to install. The clamping and loosening actions are realized by air intake from the side. It can clamp a full range of applicable pipe fittings and has a full stroke to improve production efficiency.
The four-claw guide uses a guide rail mechanism to drive, making the four-claws more linear and stable, achieving a self-centering effect. There is no need to additionally adjust the position of the four-claws, which greatly reduces the labor cost of machine adjustment and improves production efficiency. Uploading... rate.
Aviation Aluminum Beam
The beam is made of aviation-grade extruded aluminum, which has the advantages of good toughness, light weight, corrosion
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
Accuracy measurement
Original 35mm Taiwan YYC rack, Hiwin guide rail.Greater carrying capacity to the thickness of the metal to be cut.and with Automatic lubrication system it can help the users more convenient and save more time .
Detailed control
Whole machine delivery, no installation is required, and it is ready to use when plugged in.
Industrial computer, good cooling
effect, dustproof.
effect, dustproof.
Testing made before shipment.
each customers machine all be tested and runing more than 24h in our factory and testing kind of materails and thickness and save the parameters for all of the customers .
High quality accessories guaranteed
with top brand Raycus Auto focus laser head. it is more convenient for without any using experience customers to make adjustments .and long using life
Quality control
Ensure the accuracy of cutting parameters and ensure high-quality cutting samples.it will be more stable for customer working
Q: What is a fiber laser cutting machine? A: Fiber laser is a special type of solid laser. Typically, fiber lasers are optically pumped, which is accomplished by coupling the radiation from a diode maser or other fiber laser into the cladding or core itself in a direction parallel to the fiber core. In many cases, to achieve higher output power, double-clad fiber is used. What materials can fiber laser cut? Various metals such as stainless steel, carbon steel, mild steel, galvanized steel, aluminum,Copper etc. Q: Do you have CE documents and other customs declaration documents? A: Yes, we have the original. First, we will show you and give you CE/packing list/commercial Invoice/sales contract for customs clearance. Q: Payment terms? A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash, etc. Q: I don’t know how to use it after receiving it, or I encounter problems during use. What should I do? A: We can provide cam for team viewer/Whatsapp/email/phone/Skype until you solve all the problems. Q: What is your MOQ? A: We have no MOQ. Whether it is an order for 1 set or 100 sets, we will support you wholeheartedly. Q: How does your factory do in terms of quality control? A: Quality is priority. Each OREE laser machine will undergo 24 tests. After all 24 items are passed, our QC will conduct a 48 to 72 hours reliability test. Our laser machine has obtained CE.
