The software automatically adjusts the focal length to complete rapid perforation and cutting of sheets of different thicknesses.
It is more friendly to those with 0 experience, and the operation is simple, convenient, fast and accurate.
 |

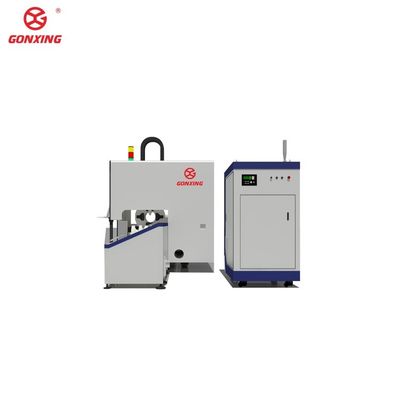

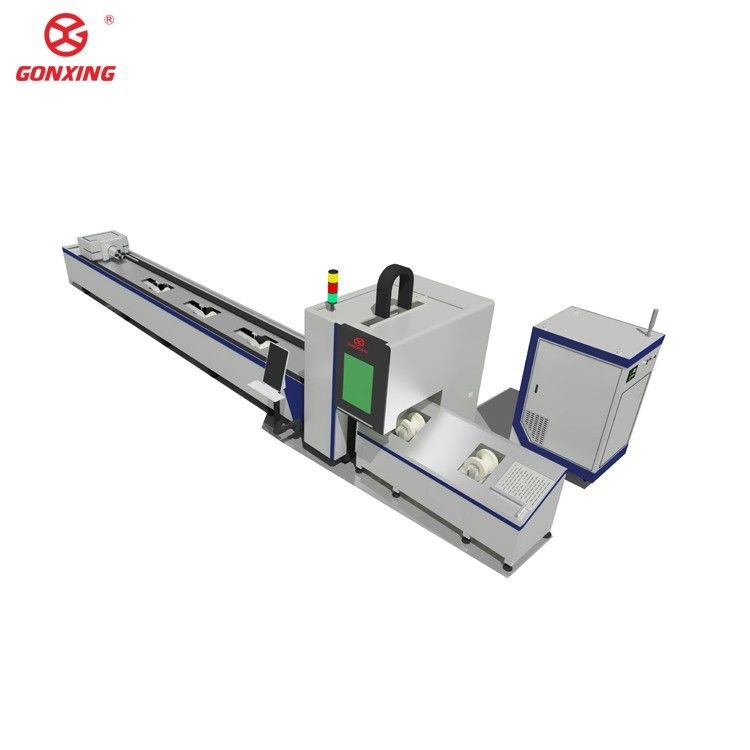

High Precision 6020 Tube Fiber Laser Cutting Machine with N2 Control valve SMC-Japan and 3-axis Configuration by GONXING
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | GONXING |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,600.00/sets 1-2 sets |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 1500mm*3000mm | Cutting Speed: | 0-40000mm/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 20mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | CYPCUT | Laser Source Brand: | MAX/RAYCUS/IPG |
| Laser Head Brand: | OSPRI/ PRECITEC/ RAYTOOL | Servo Motor Brand: | Fuji/Delta/INOVANCE/Yasukawa |
| Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
| Weight (KG): | 7000 KG | Key Selling Points: | Automatic |
| Warranty: | 3 Years | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 3 Years | Core Components: | Engine |
| Mode Of Operation: | Continuous Wave | Configuration: | 3-axis |
| Products Handled: | Tube | Feature: | Automated Loading |
| Keyword: | 1500w 2000w 3000w 6000w Tube Laser Cutting Machine For Metal | Material: | Carbon Steel Stainless Steel Brass Copper |
| Gear Rack: | YYC-Taiwan | Bearings: | NSK-Japan |
| Pressure Reducing Valve: | SMC-Japan | N2 Control Valve: | SMC-Japan |
| O2 Control Valve: | SMC-Japan | Electrical Components: | Schneider Electric-France |
| Circuit Breaker: | Schneider Electric-France | Relay: | Schneider Electric-France |
Product Description
model | GX-6012T | GX-6017T | GX-6024T | GX-6029T | GX-6035T | ||||
working area | 1500*3000mm | 1500*4000mm | 1500*6000mm | 2000*4000mm | 2000*6000mm | ||||
X/Y axis positioning accuracy | ±0.03mm | ||||||||
X/Y axis repositioning accuracy | ±0.01 mm | ||||||||
maximum movement speed | 120 m/min | ||||||||
maximum acceleration | 1.5G | ||||||||
Laser Power | 1.5-6kw | 1.5-6kw | 1.5-6kw | 1.5-6kw | 1.5-6kw | ||||
Laser Source | MAX/RAYCUS/IPG(optional) | 1.5G | 1.5G | 1.5G | |||||
laser cutting head | OSPRI/ PRECITEC/ RAYTOOLS (optional) | ||||||||
servo motor | Fuji/Delta/INOVANCE/Yaskawa (optional) | ||||||||
systems & software | CYPCUT | ||||||||
Reducer | Shimpo | ||||||||
Auto focus laser head specail cutting tube
recitec or Raytools auto-focus laser head,World brand and quality.
The software automatically adjusts the focal length to complete rapid perforation and cutting of sheets of different thicknesses.
It is more friendly to those with 0 experience, and the operation is simple, convenient, fast and accurate.
The software automatically adjusts the focal length to complete rapid perforation and cutting of sheets of different thicknesses.
It is more friendly to those with 0 experience, and the operation is simple, convenient, fast and accurate.
High quality Servo motor and Driver
With their high efficiency and high power factor, Fuji Electric's Medium-voltage inverters contribute significantly to cost
reduction and energy conservation.
Our inverter products are applicable in a wide range of fields from plants to general industry and feature superior ease of
maintenance.
reduction and energy conservation.
Our inverter products are applicable in a wide range of fields from plants to general industry and feature superior ease of
maintenance.

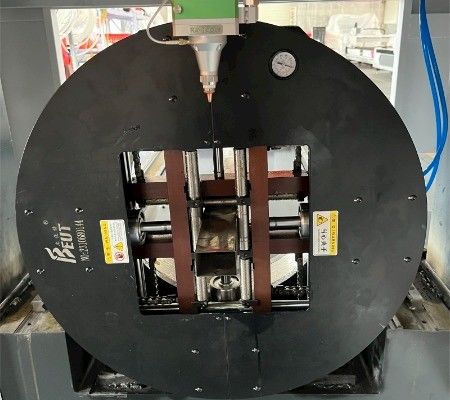

High quality fully pneumatic chuck
Full-stroke pneumatic chuck with a built-in cylinder, which is easy to install. The clamping and loosening actions are realized by air intake from the side. It can clamp a full range of applicable pipe fittings and has a full stroke to improve production efficiency.
The four-claw guide uses a guide rail mechanism to drive, making the four-claws more linear and stable, achieving a self-centering effect. There is no need to additionally adjust the position of the four-claws, which greatly reduces the labor cost of machine adjustment and improves production efficiency. Uploading... rate.
Aviation Aluminum Beam
The beam is made of aviation-grade extruded aluminum, which has the advantages of good toughness, light weight, corrosion
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
Accuracy measurement
Original 35mm Taiwan YYC rack, Hiwin guide rail.Greater carrying capacity to the thickness of the metal to be cut.and with Automatic lubrication system it can help the users more convenient and save more time .

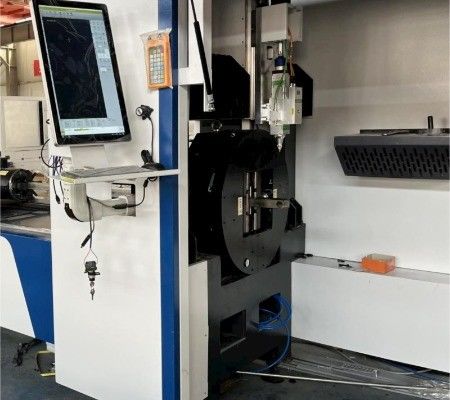

Detailed control
Whole machine delivery, no installation is required, and it is ready to use when plugged in.
Industrial computer, good cooling
effect, dustproof.
effect, dustproof.

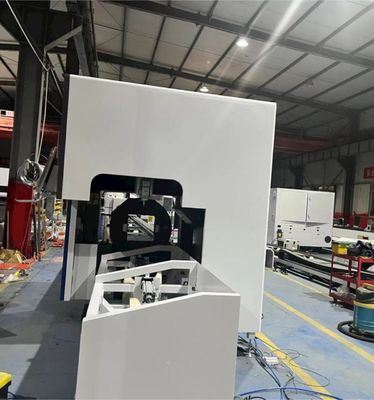

Testing made before shipment.
each customers machine all be tested and runing more than 24h in our factory and testing kind of materails and thickness and save the parameters for all of the customers .

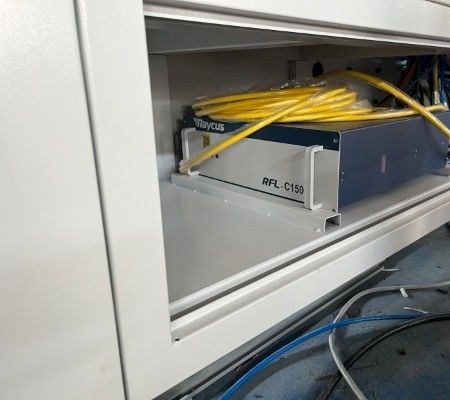

High quality accessories guaranteed
with top brand Raycus Auto focus laser head. it is more convenient for without any using experience customers to make adjustments .and long using life
Quality control
Ensure the accuracy of cutting parameters and ensure high-quality cutting samples.it will be more stable for customer working
Q: What is a fiber laser cutting machine? A: Fiber laser is a special type of solid laser. Typically, fiber lasers are optically pumped, which is accomplished by coupling the radiation from a diode maser or other fiber laser into the cladding or core itself in a direction parallel to the fiber core. In many cases, to achieve higher output power, double-clad fiber is used. What materials can fiber laser cut? Various metals such as stainless steel, carbon steel, mild steel, galvanized steel, aluminum,Copper etc. Q: Do you have CE documents and other customs declaration documents? A: Yes, we have the original. First, we will show you and give you CE/packing list/commercial Invoice/sales contract for customs clearance. Q: Payment terms? A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash, etc. Q: I don’t know how to use it after receiving it, or I encounter problems during use. What should I do? A: We can provide cam for team viewer/Whatsapp/email/phone/Skype until you solve all the problems. Q: What is your MOQ? A: We have no MOQ. Whether it is an order for 1 set or 100 sets, we will support you wholeheartedly. Q: How does your factory do in terms of quality control? A: Quality is priority. Each OREE laser machine will undergo 24 tests. After all 24 items are passed, our QC will conduct a 48 to 72 hours reliability test. Our laser machine has obtained CE.
